800L Brewing Beer Equipment
+86-0531-68826689 zunhuang@zhbrewing.com
Equipment system

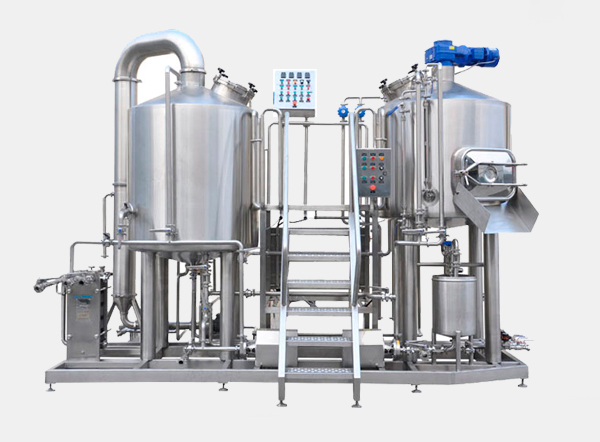

Mash System
Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.
The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place).
All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.
If you are interested, please contact us for details
Click here to communicate now!!!
Fermentation System
The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.
Tank date:
1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space
2. Interior shell thickness 3-6mm, Exterior shell=2mm
3. 100% TIG welding with pure argon gas shield
4. Interior finish: pickled and passivated, external polished, 80mm insulated
5. Test pressure 3 bar, working pressure 1.5 bar
6. Glycol zones (Both on side and concial/bottom)
7. 60°conical bottom for Fermener, Shadow less side man way
8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
9. Mechanical relief valve 3 bar on CIP arm with pressure gauge
10.Adjustable tank leveling pads
Product details:
If you are interested, please contact us for details
Click here to communicate now!!!
Beer Brewing Equipment
1 |
malt milling system |
malt miller machine grist case |
2 |
Mash system |
Mash tank/Boiling tank lauter tank Whirlpool tank |
3 |
Fermenting system |
Beer fermenters |
4 |
Cooling system |
Ice water tank |
5 |
CIP cleaning system |
disinfection tank & alkali tank &cleaning pump etc. |
6 |
Controller |
Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on. |
7 |
Kegging system |
kegging system ( keg washer and keg filler machine), the control system brand is Siemens. |
Product Process
If you are interested, please contact us for details
Click here to communicate now!!!
Packaging & Shipping
1. Ocean shipment,railway shipment,express delivery.
2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.
3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.
4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.
Our Services
Ten provide to service you:
1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you need.
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.
10. Door to Door service, if you need any brewing parts.
