500L beer fermentation tank

Tank date:
1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space
2. Interior shell thickness 3-6mm, Exterior shell=2mm
3. 100% TIG welding with pure argon gas shield
4. Interior finish: pickled and passivated, external polished, 80mm insulated
5. Test pressure 3 bar, working pressure 1.5 bar
6. Glycol zones (Both on side and concial/bottom)

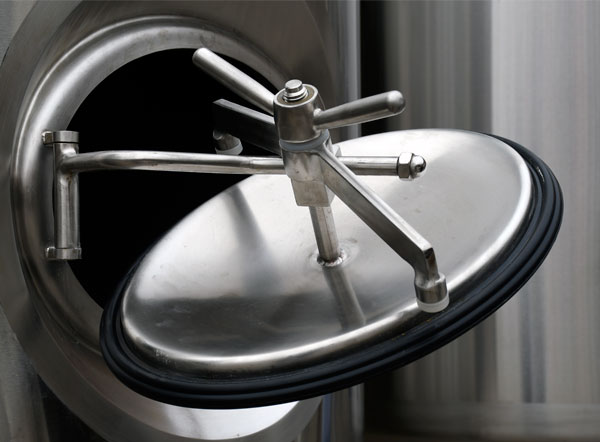

7. 60°conical bottom for Fermener, Shadow less side man way
8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
9. Mechanical relief valve 3 bar on CIP arm with pressure gauge
10.Adjustable tank leveling pads

Chat NowOnline Message

+86-531-6882 8589 zunhuang@zhbrewing.com

Product Description

The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.


Production capacity 500 1000 2000 5000 10000 20000
VolumeEffective/Total 500/660 1000/1330 2000/2660 5000/6600 10000/13300 20000/26600
Inner shell diameter(mm) 1400 1600 2000 2800 3000 3500
Cooling area m2 2.2 4.4 8.7 15 25 48
Working pressure 0.14 0.14 0.14 0.14 0.14 0.14
Cooling method Dimple plate jacket Dimple plate jacket Dimple plate jacket Dimple plate jacket Dimple plate jacket Dimple plate jacket
Conical angle 60 60 60 78 78 78


Tank date:

1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

2. Interior shell thickness 3-6mm, Exterior shell=2mm

3. 100% TIG welding with pure argon gas shield

4. Interior finish: pickled and passivated, external polished, 80mm insulated

5. Test pressure 3 bar, working pressure 1.5 bar

6. Glycol zones (Both on side and concial/bottom)

7. 60°conical bottom for Fermener, Shadow less side man way

8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

10.Adjustable tank leveling pads.


PRODUCT DETAILS:



If you are interested, please contact us for details

Click here to communicate now!!!



Product Process




Packaging & Shipping

1. Ocean shipment,railway shipment,express delivery.

2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.


Our Services

Ten provide to service you:

1. After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need.

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8. To provide update information about brewing equipment technology once we test.

9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.


If you are interested, please contact us for details

Click here to communicate now!!!
