2000L Large beer brewery plant beer brew plant for beer brewing

Product classification: beer brewing equipment
Applications area: Beer Bars, Hotels, Restaurants, Brew pub etc.
Product features:
1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;
2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;
4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

Chat NowOnline Message

+86-531-6882 8589 zunhuang@zhbrewing.com

Equipment system

Mash system

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.)

All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.

Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

_20191031094932

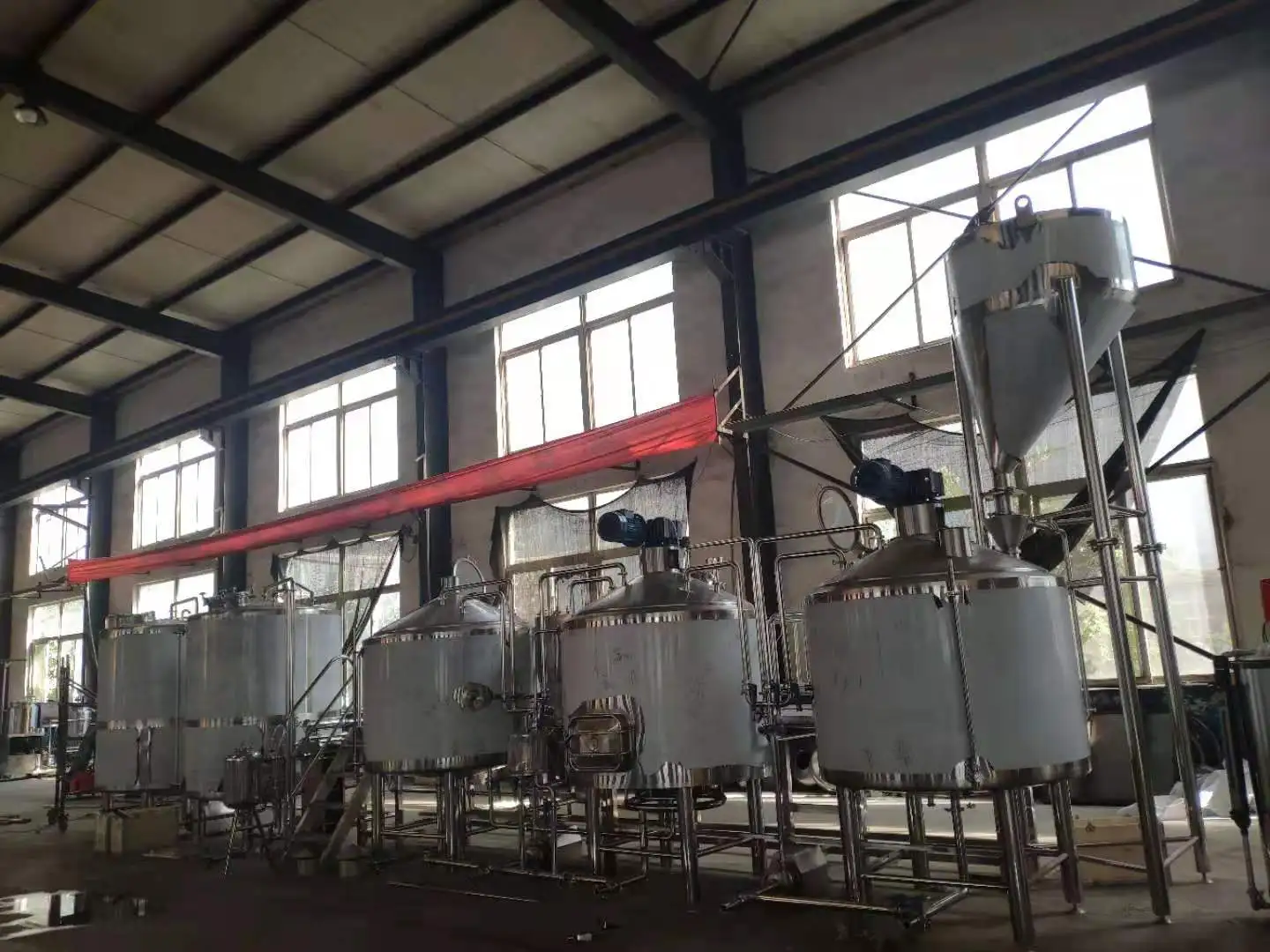

2000L 3 vessels

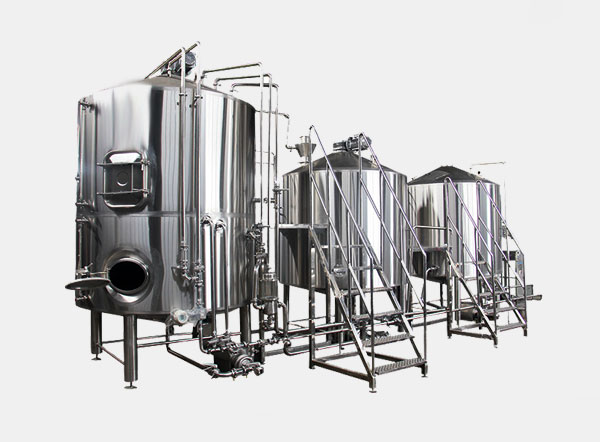

Brewhouse: Mash tun+ Lauter+ Brew kettle/ Whirlpool+HLT.

Material: SS304/SS316/SS316L/Red copper/Titanium plate/Other material.

Heating method: Electric heating/ Steam heating/ Direct fire heating.

For mash system, beside these main tanks also with other auxiliary equipment such as pump,  plate heat exchanger, buffer tank, hop filter, platform, pipes and other necessary.

Support customization, please contact for more requirements!

Mash System details 02


 If you are interested, please contact us for details

Click here to communicate now!!!


Fermentation System

Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.



The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

IMG_2668

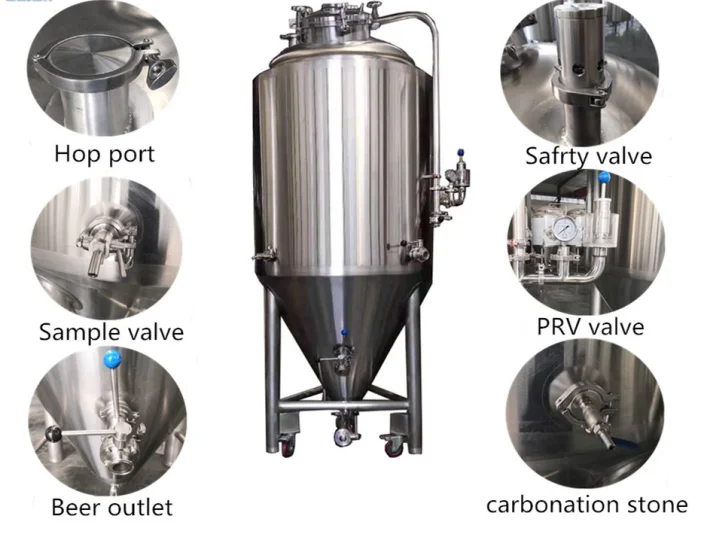

Tank date:

1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

2. Interior shell thickness 3-6mm, Exterior shell=2mm

3. 100% TIG welding with pure argon gas shield

4. Interior finish: pickled and passivated, external polished, 80mm insulated

5. Test pressure 3 bar, working pressure 1.5 bar

6. Glycol zones (Both on side and concial/bottom)

7. 60°conical bottom for Fermener, Shadow less side man way

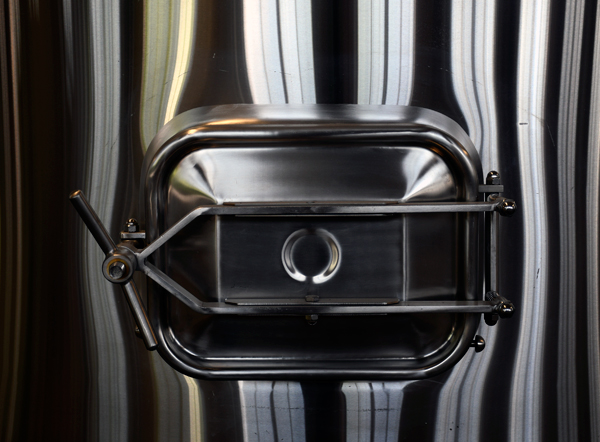

8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

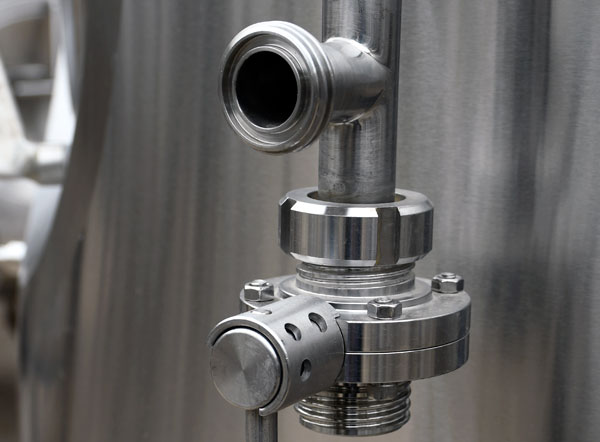

9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

10.Adjustable tank leveling pads.



,

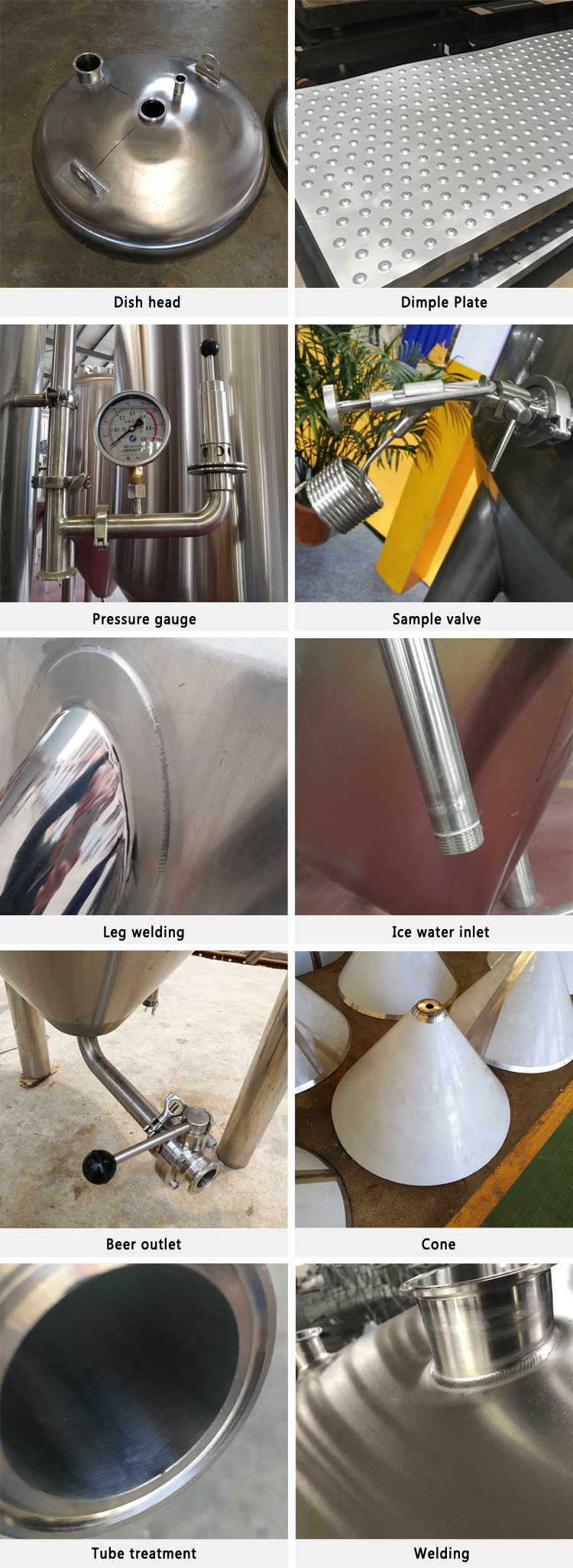

Product details:




If you are interested, please contact us for details

Click here to communicate now!!!


Beer Brewing Equipment

1

malt milling system

malt miller machine

grist case

2

Mash system

Mash tank/Boiling tank

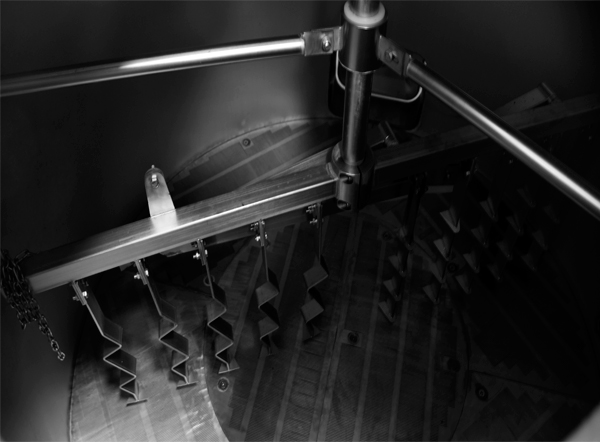

lauter tank

Whirlpool tank
Hot water tank

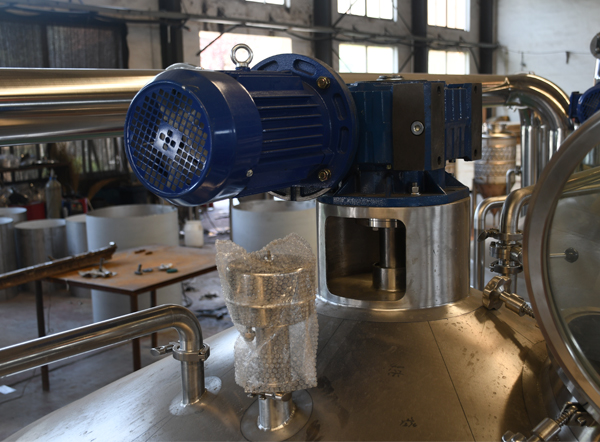

Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger

3

Fermenting system

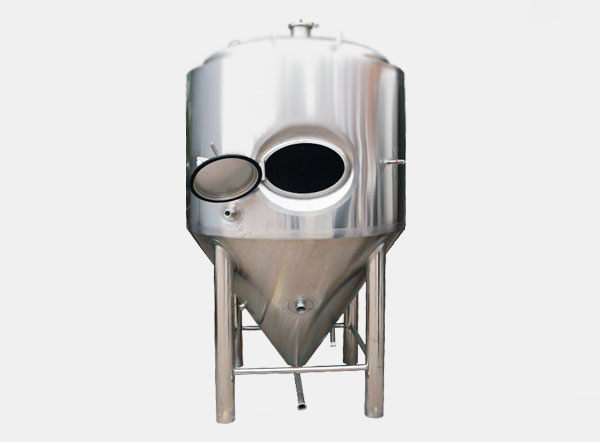

Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on

4

Cooling system

Ice water tank
Refrigerating unit
Ice water pump

5

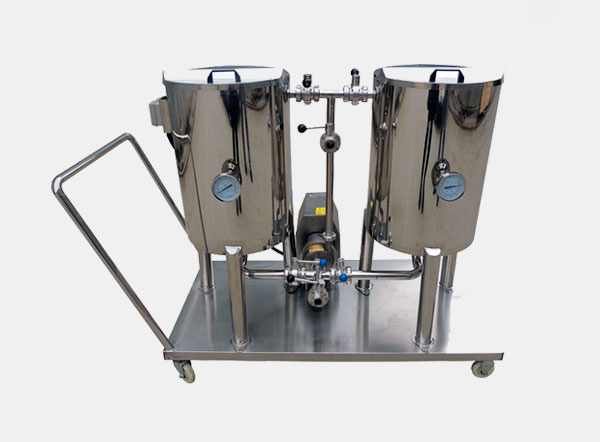

CIP cleaning system

disinfection tank & alkali tank &cleaning pump etc.

6

Controller

Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.

7

Kegging system

kegging system ( keg washer and keg filler machine), the control system brand is Siemens.



Auxiliary machine




Product Process



Company Information

Shandong Zunhuang Brewing Equipment Co., Ltd

Shandong Zunhuang Brewing Equipment Co.,Ltd is a professional beer equipment manufacturer who have 16 years experience in this filed.We are specialized in professional design, manufacture, installation and commissioning of various beer equipments and supporting facilities.


Our products include mashing equipment, fermentation equipment,yeast spread cultivation equipment, and We provide equipment with the productivity of 100 liter to 20000 liter per brew.






CERTIFICATE:


EXHIBITION:



CUSTOMER CASE:


Packaging & Shipping

1. Ocean shipment,railway shipment,express delivery.

2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.


Our Services

Ten provide to service you:

1. After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need.

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8. To provide update information about brewing equipment technology once we test.

9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.


FAQ

Q1:What equipment can you provide?

A1:We are a professional craft beer, fruit wine equipment manufacturer, we could provide home brewing equipment; hotel, restaurant, pub brewing equipment; microbrewery equipment and winery equipment, we have serviced more than 60 countries and areas, we could provide turkey project and dispatch our worker to install equipment overseas.

Q2:What model number can you provide?

A2:We have many model, for example ZH- 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L and so on. If you have other size, our engineer will specially design the equipment for you, we have professional engineers team to service for you.

Q3:What heating type can you provide?

A3:We have direct fire, electrical tube, electrical steam, oil steam, gas steam heating types, you can consider which one is convenient for you.

Q4:Could you tell me what equipment do you need?

A4:If you are interested in our equipment, please don't hesitate and welcome you contact me, write your equipment demands, and send me a message, I will reply you quickly.
