3500L Micro Brewery

Product features:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

Chat Now Online Message

+86-531-6882 8589 zunhuang@zhbrewing.com

Description Detail drawing Order immediately

Product Description

The whole beer equipment is consisted of Mash system,Fermentation system,Refrigeration system,Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.

Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

Equipments characteristics: small investment.quick effectiveness , high quality , lower prices , the investment repayment is fast , the service life of equipment is long , easy operation , lower cost.Strong technical force.

At the same time if you have requirements, we could design and produce the products you need!

Equipment list

1	malt milling system	malt miller machine grist case
2	Mash system	Mash tank/Boiling tank lauter tank Whirlpool tank Hot water tank Mash/wort/hot water pump Motors Wort oxygenation device Operation platform Plate heat exchanger
3	Fermenting system	Beer fermenters Bright beer tanks Yeast adding tank Accessories, such as sample valve, pressure gauge, safety valve and so on
4	Cooling system	Ice water tank Refrigerating unit Ice water pump
5	CIP cleaning system	disinfection tank & alkali tank &cleaning pump etc.
6	Controller	Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.
7	Kegging system	kegging system ( keg washer and keg filler machine), the control system brand is Siemens.

Equipment system

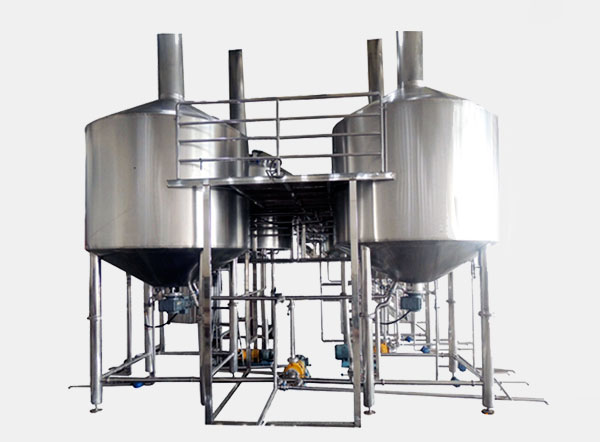

1. Mash system:

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.)All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.

Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

1000L-2000L large and micro beer brewery equipment

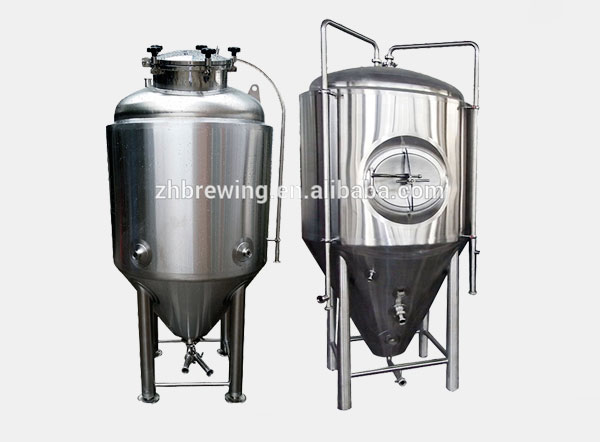

2. Fermentation system:

Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.

1000L-2000L large and micro beer brewery equipment

3. Cooling System

Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system.
