1000L 3 vessel brewing system

Product classification: Brewing beer equipment

Applications area: Micro brewery

Product features:

1. The production capacity is from 500L-3500L per batch , it can also customize according to different requirements;
2. It has several advantages including artistic appearance,sanitary surface small size ow cost. safety performance and simple operation;

Chat NowOnline Message

+86-531-6882 8589 zunhuang@zhbrewing.com

Product Description

The whole beer equipment is consisted of Mash system,Fermentation system,Refrigeration system,Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.

 Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

 Equipments characteristics: small investment.quick effectiveness , high quality , lower prices  , the investment repayment is fast , the service life of equipment is long , easy operation , lower cost.Strong technical force.

 At the same time  if  you have requirements, we could design and produce the products you need!



Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool. The main part of  equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.)



Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant control mode at the end of the cone and the tank level 10--15cm down. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

1

Equipment list

Beer Brewing Equipment

1

malt milling system

malt miller machine

grist case

2

Mash system

Mash tank/Boiling tank

lauter tank

Whirlpool tank
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger

3

Fermenting system

Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on

4

Cooling system

Ice water tank
Refrigerating unit
Ice water pump

5

CIP cleaning system

disinfection tank & alkali tank &cleaning pump etc.

6

Controller

Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.

7

Kegging system

kegging system ( keg washer and keg filler machine), the control system brand is Siemens.

Equipment system

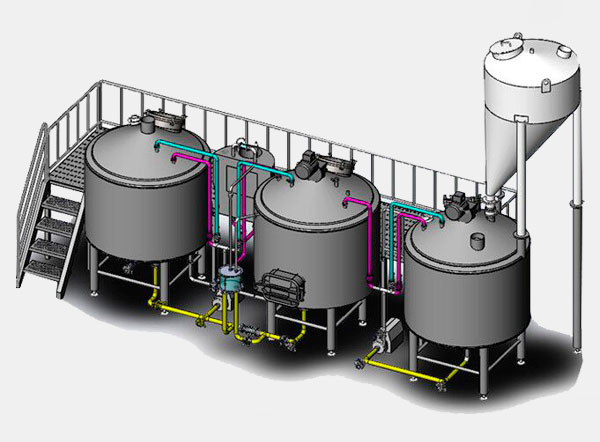

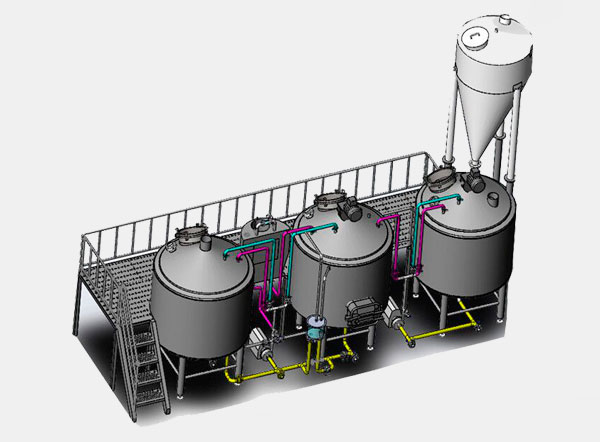

1.Mash System

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

11



IMG_4545



Welding

1



2.Fermentation System

Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.

3T fermenter.jpg



_20191024133532



Details treatment

FV detail



Mash detail

Polishing




Inner tank treatment

6



3. Cooling System

Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system.2000L glycol tank.jpg

Packaging & Shipping

1. Ocean shipment,railway shipment,express delivery.

 2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.


Our Services

 Company service



Being our customer, you can get the following service:

 1. Projects supporting (Layout of equipment and equipment site);

 2. Brewing formula & technology;

 3. Equipment installation at your location;

 4. Equipment debugging and trial brewing;

 5. Equipment maintenance;

 6. Personal training.



Certifications

Our certificate


Company Information

Shandong Zunhuang Brewing Equipment Co., Ltd



 1. Shandong Zunhuang Brewing Equipment Co., Ltd, located in Jinan city(China, mainland), is a professional beer equipment, fruit wine equipment manufacturer in China. Shandong Zunhuang could provide the turnkey project for customer, including Production→ Inspection→ Packing & Shipping→ Installation &Training → After Sales.



 2. The equipment has  exported  more than 60 countries and regions,  including the United States, Spain, Canada, Sweden, Denmark, Russia, India, Brazil, and other countries. _20180628164522.jpg
