1000L stainless steel brewing Beer Equipment

Product classification: beer brewing equipment
Applications area: Beer Bars, Hotels, Restaurants, Brew pub etc.
Product features:
1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;
2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;
4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

Chat NowOnline Message

+86-531-6882 8589 zunhuang@zhbrewing.com

Equipment list

1

malt milling system

malt miller machine

grist case

2

Mash system

Mash tank/Boiling tank

lauter tank

Whirlpool tank
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger

3

Fermenting system

Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on

4

Cooling system

Ice water tank
Refrigerating unit
Ice water pump

5

CIP cleaning system

disinfection tank & alkali tank &cleaning pump etc.

6

Controller

Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.

7

Kegging system

kegging system ( keg washer and keg filler machine), the control system brand is Siemens.

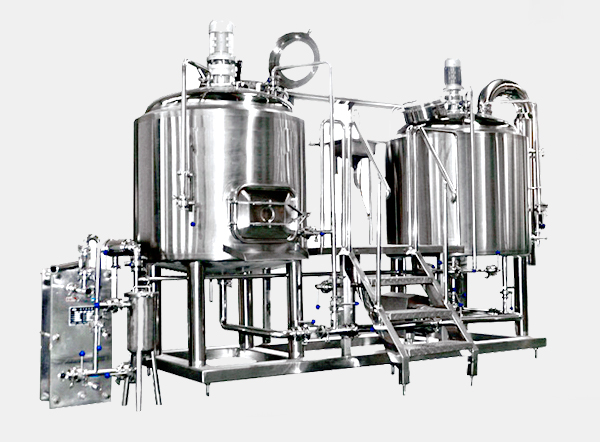

Mash System

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.


The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place).


All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.


If you are interested, please contact us for details

Click here to communicate now!!!

Fermentation System

The material of the fermentation tank are also 304 stainless steel. double wall. Dish head, inner surface also use pickled and passiviated. conical angel 60°design, easy for yeast collection after primary fermentation.  use polyurethane foam to keep temperature.


Adopted the international standard of fermentation technology, diverse methods to control the temperature. Completely meet the demand of PLC and sterilize system.


The dimple cooling jacket can achieve all countries’ standard,Meet all kinds of demand of cooling technology of coolant and pressure.


Fermentation details:

Production capacity

500

1000

2000

5000

10000

20000

Volume

Effective/Total

500/660

1000/1330

2000/2660

5000/6600

10000/

13300

20000/

26600

Inner shell diameter

(mm)

1400

1600

2000

2800

3000

3500

Cooling area m2

2.2

4.4

8.7

14

25

48

Working pressure

0.14

0.14

0.14

0.14

0.14

0.14

Cooling method

Dimple plate jacket

Dimple plate

 jacket

Dimple plate jacket

Dimple plate

 jacket

Dimple plate

 jacket

Dimple plate jacket

Conical angle

60

60

60

78

78

78






Packaging & Shipping

1. Ocean shipment,railway shipment,express delivery.

2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.
