1500L 4 vessel beer brewing equipment

Product classification: Brewing beer equipment

Applications area: Beer Bars, Hotels, Restaurants etc.

Equipments characteristics: Simple operation ,PLC automatic control system ,PLC semi-automatic control system. small investment.quick effectiveness , high quality , lower prices  , the investment repayment is fast , the service life of equipment is long , easy operation , lower cost.Strong technical force.

Chat NowOnline Message

+86-531-6882 8589 zunhuang@zhbrewing.com

Product Description

The whole beer equipment is consisted of Mash system,Fermentation system,Refrigeration system,Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.

Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

At the same time  if  you have requirements, we could design and produce the products you need!

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant control mode at the end of the cone and the tank level 10--15cm down.


Equipment list

1
malt milling system

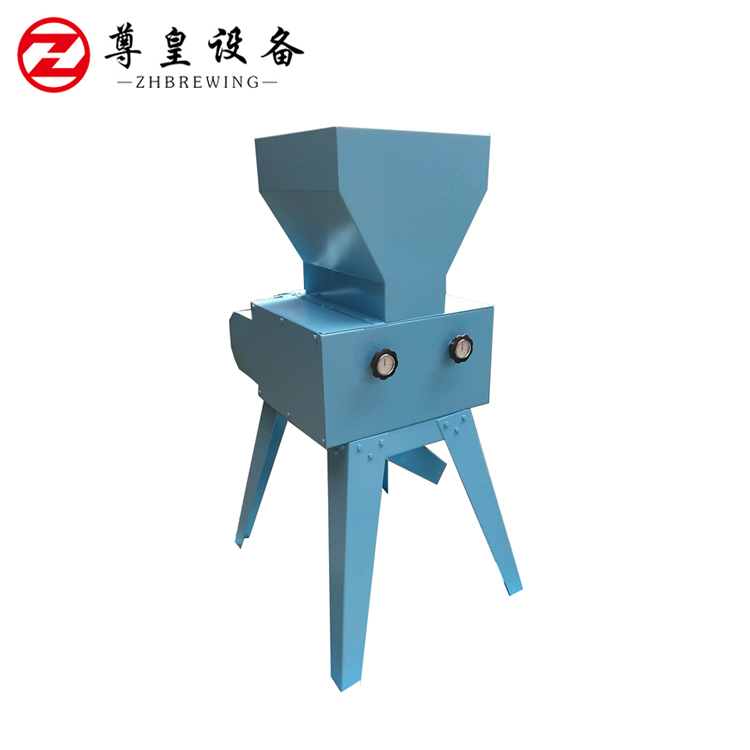

malt miller machine
grist case
2
Mash system
Mash tank/Boiling tank
lauter tank
Whirlpool tank
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger
3
Fermenting system
Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on
4
Cooling system
Ice water tank

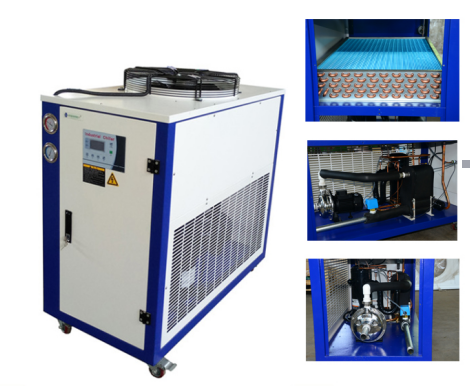

Refrigerating unit
Ice water pump
5
CIP cleaning system
disinfection tank & alkali tank &cleaning pump etc.
6
Controller
Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.
7
Kegging system
kegging system ( keg washer and keg filler machine), the control system brand is Siemens.

Equipment system

1.Malt Milling System
Malt crushing equipment used roller mill, distance adjustable. It is the most simple, a pair of drawing rollers, the two rollers during grinding relative rotation, the rotational speed of a roller is fixed, the other is adjustable. Operation to ensure malt evenly distributed over the entire roller, and feed rate is moderate, consistent feed rate.

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

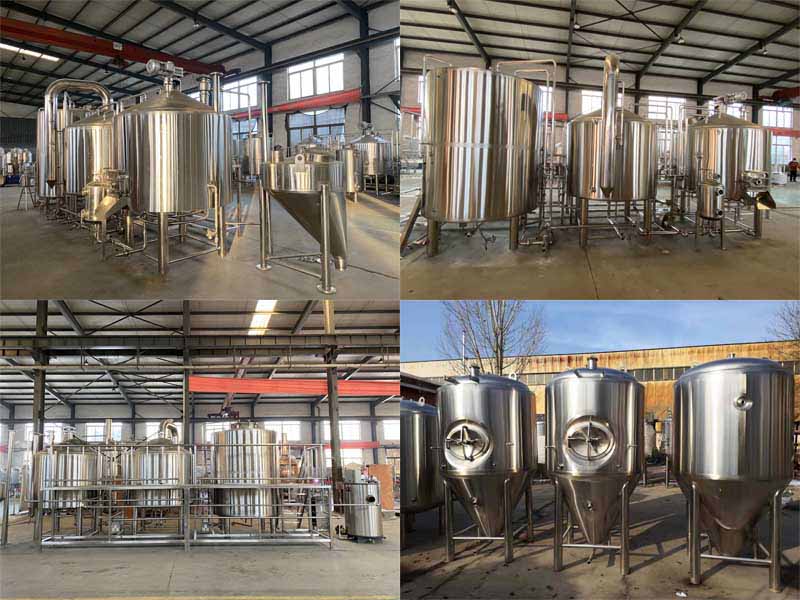

2.Mash system
Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.
The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.)
All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.

Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

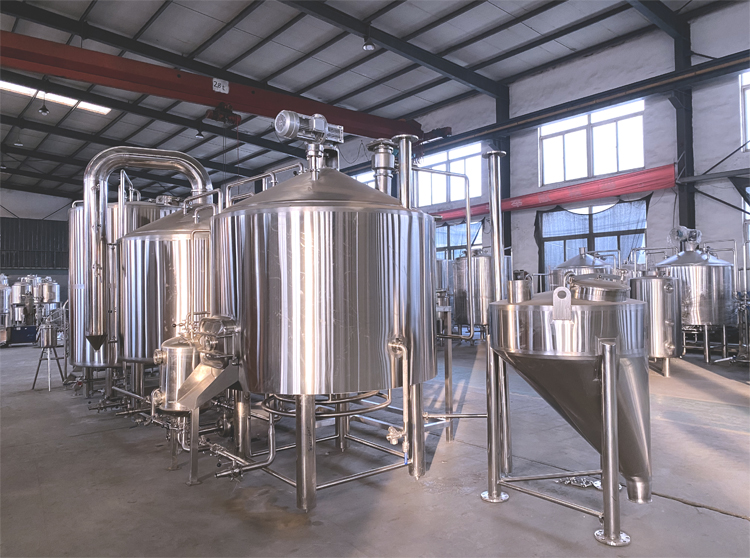

1000L 3 vessels
Brewhouse: Mash tun+ Lauter+ Brew kettle/ Whirlpool+HLT.
Material: SS304/SS316/SS316L/Red copper/Titanium plate/Other material.
Heating method: Electric heating/ Steam heating/ Direct fire heating.
For mash system, beside these main tanks also with other auxiliary equipment such as pump,  plate heat exchanger, buffer tank, hop filter, platform, pipes and other necessary.

Support customization, please contact for more requirements!

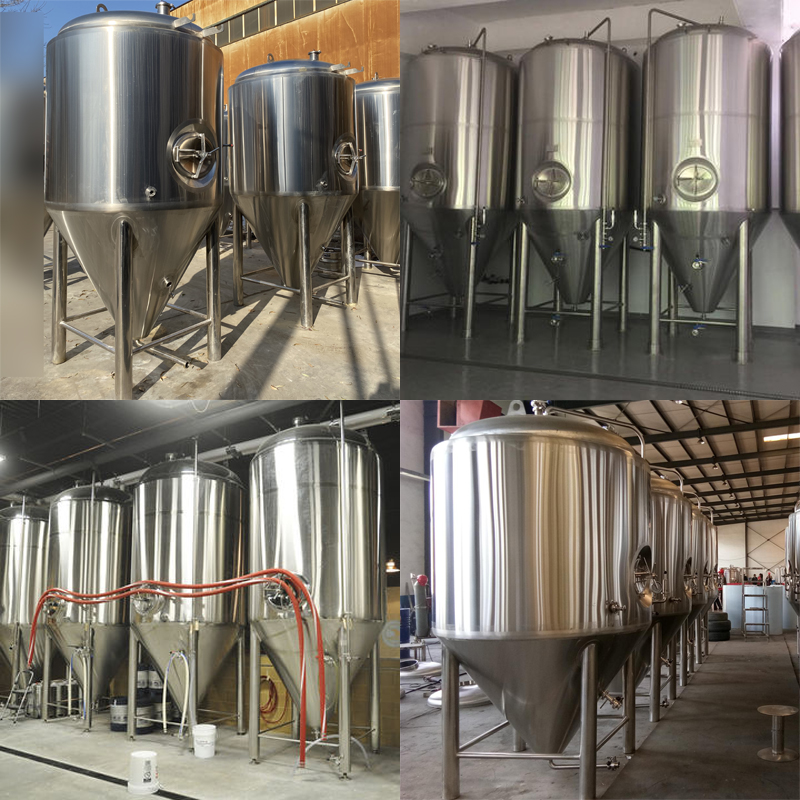

3.Fermentation System

Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.

The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.


Tank date:
1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space
2. Interior shell thickness 3-6mm, Exterior shell=2mm
3. 100% TIG welding with pure argon gas shield
4. Interior finish: pickled and passivated, external polished, 80mm insulated
5. Test pressure 3 bar, working pressure 1.5 bar
6. Glycol zones (Both on side and concial/bottom)
7. 60°conical bottom for Fermener, Shadow less side man way
8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
9. Mechanical relief valve 3 bar on CIP arm with pressure gauge
10.Adjustable tank leveling pads.

4.Cooling System

Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system.


5.CIP system
CIP cleaning system is consist of alkali tank, acid tank, sterilization water tank, disinfection tank, sanitary pump.

Accordingly the capacity of the equipment, Zunhuang company special manufactured small CIP cleaning trolley.


6.Control System
Control system is the core part in the whole beer production line, including: malt mash, mash, fermenting, cooling, temperature control, pressure control and other auxiliary. It can achieve the part control or whole PLC automatic control.

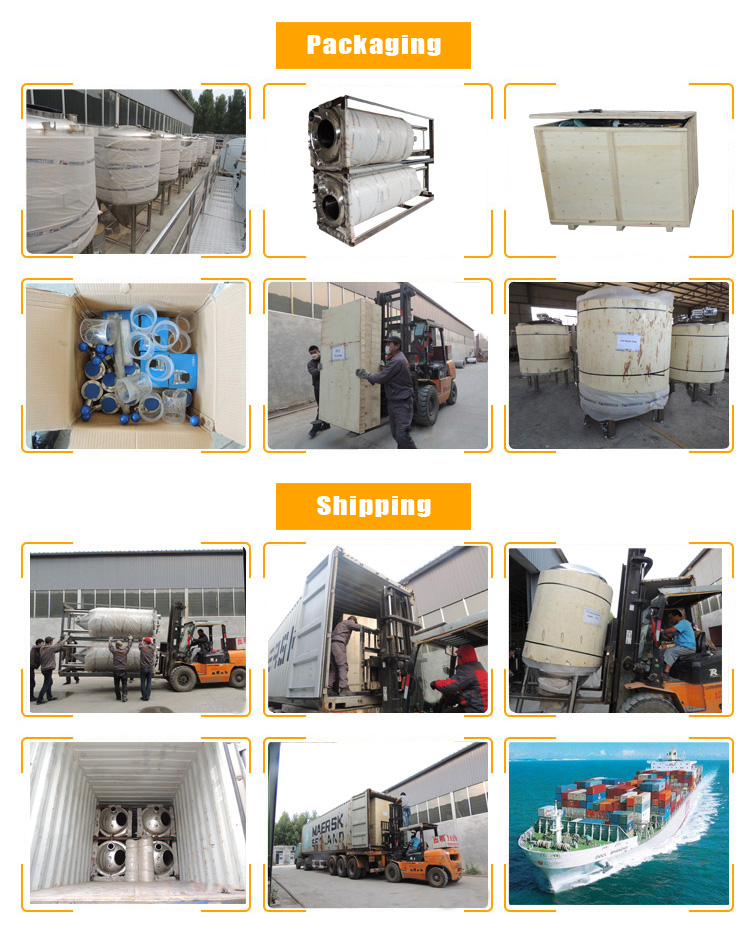

Packaging & Shipping
Packaging&delivery:
1.LCL/FCL(20GP/40GP/40HQ)
2.packed with plastic film in wooden case or fixed with iron frame
3.up to export standard, suitable for delivery
4.customer's requirements available

Packing and shipping
1. Ocean shipment,railway shipment,express delivery.
2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.
3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.


Our Services
Ten provide to service you:
1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you need.
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.
