Mash System

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place).

All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

If you are interested, please contact us for details

Click here to communicate now!!!

Fermentation System

The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

Tank date:

1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

2. Interior shell thickness 3-6mm, Exterior shell=2mm

3. 100% TIG welding with pure argon gas shield

4. Interior finish: pickled and passivated, external polished, 80mm insulated

5. Test pressure 3 bar, working pressure 1.5 bar

6. Glycol zones (Both on side and concial/bottom)

7. 60°conical bottom for Fermener, Shadow less side man way

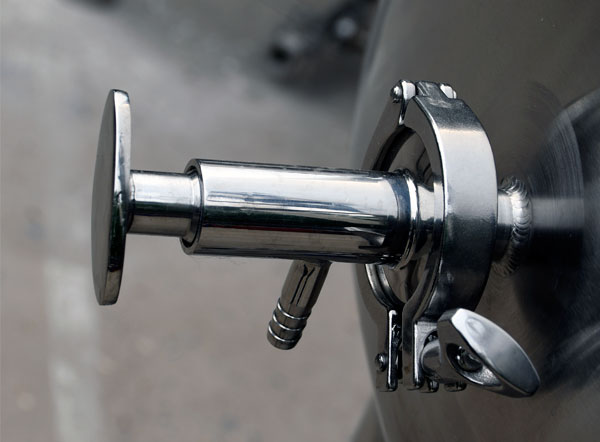

8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

10.Adjustable tank leveling pads
